Description

For optimal performance, the ecoSAVER solar heating system should be situated in an area receiving at least 6 hours of direct sunlight daily, preferably during midday when temperatures are highest. Panels can be placed on the ground, on a rack, or on a south-facing roof to capture maximum sunlight. Avoid placing panels in north-facing positions. Ground installation should avoid high traffic areas to prevent damage, and sharp objects should be cleared to prevent panel damage and leaks.

If using a rack, ensure it's inclined at 30-45 degrees and inaccessible to children. A Roof Mounting Kit is necessary for roof or rack installation. With a suitable pump, the system can be located up to 30 feet from the filter system and on a one-story roof.

Regarding pump size, a 1 to 1 1/2 HP pump is recommended. A smaller pump may require an upgrade for sufficient water flow, and if flow is weak, consider adjusting panel proximity to the pool or upgrading the pump. If the pump exceeds 1 1/2 HP, the optional Diverter Valve Kit (# ESDK-1) must be installed to control water flow and prevent panel damage.

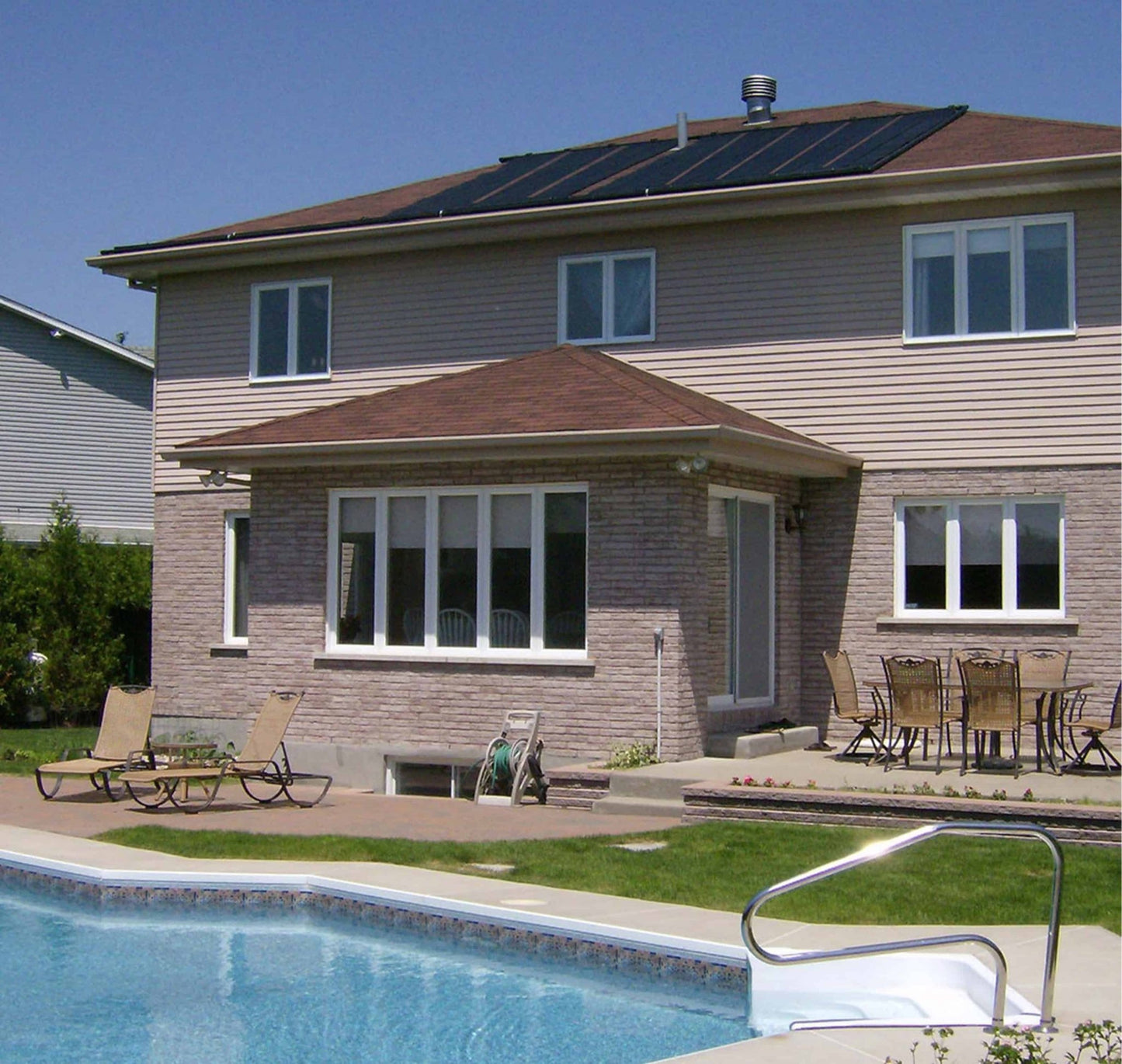

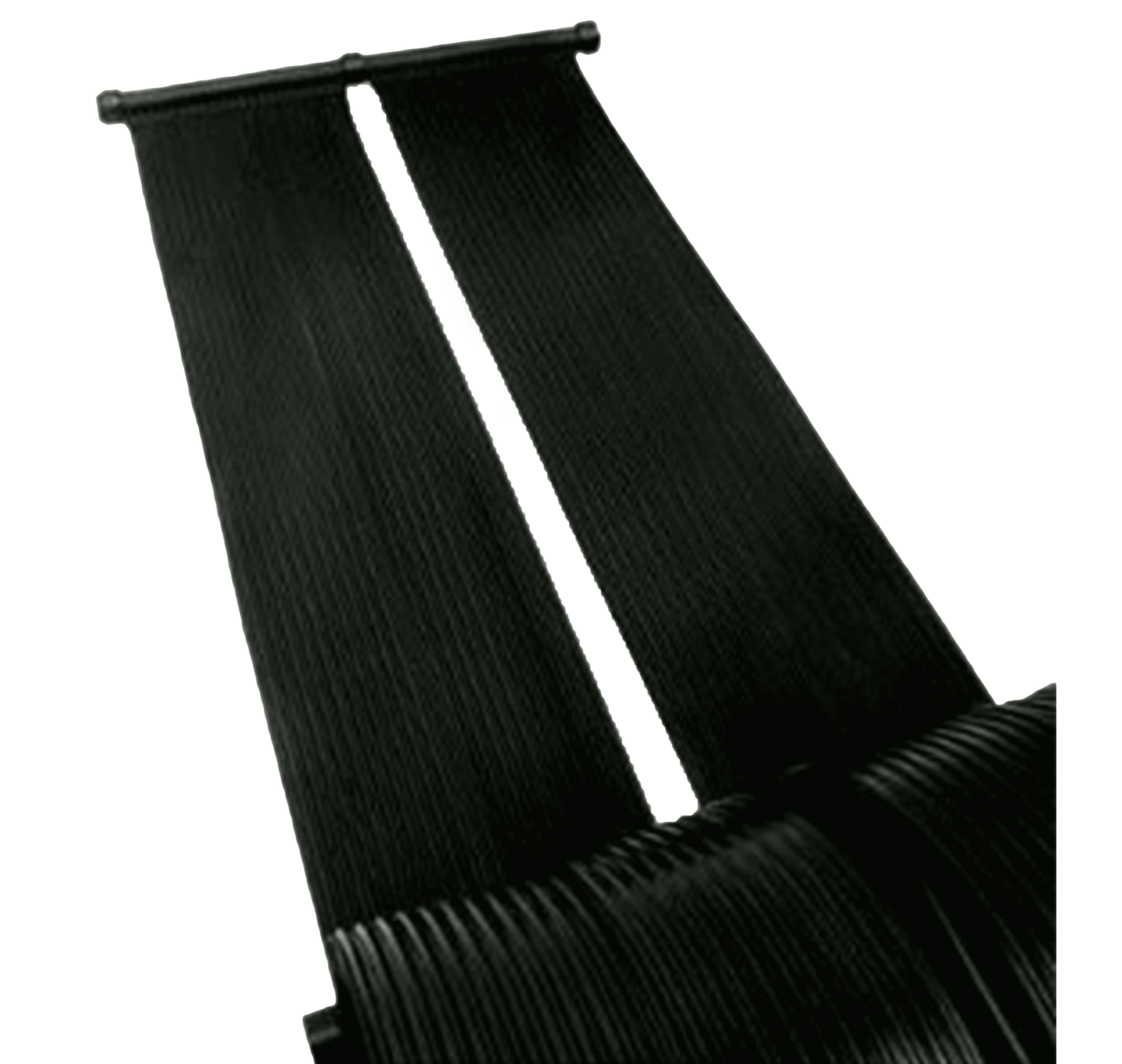

Easily mount the Solar Panel kit on your roof to harness the sun's natural heat and reap the benefits of eco-friendly energy production. The ecoSAVER Solar Panel features two available sizes:
- The "Space Saver" system includes two 10 ft. panels.
- The Standard system utilizes one 20 ft. panel (please inquire about availability).
