Description

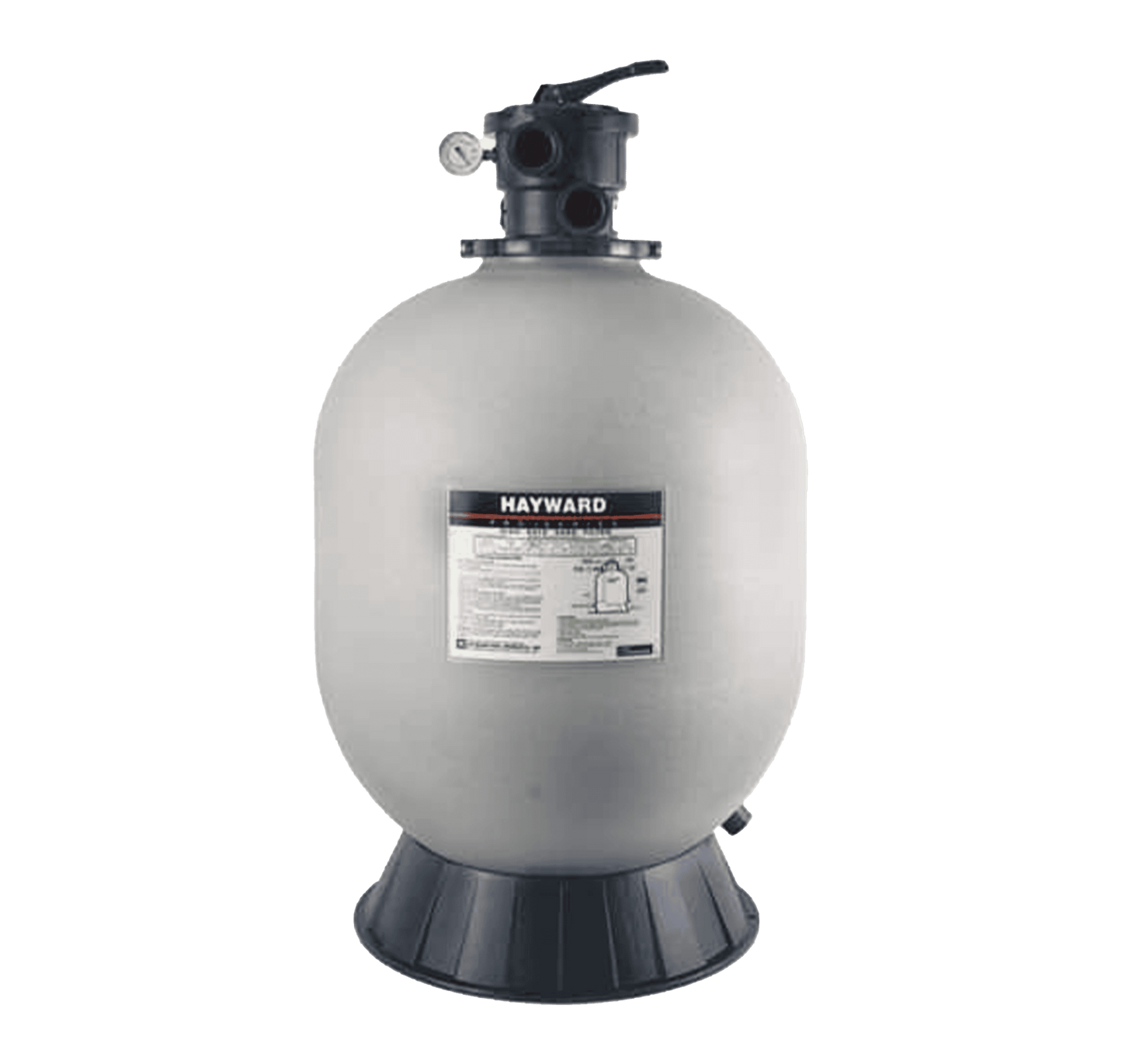

The Hayward Pro Series high-rate sand filters represent the pinnacle of pool filter technology, providing smooth and efficient flow along with perfectly balanced backwashing. Constructed with unitized corrosion-proof polymeric material, Pro Series sand filters include self-cleaning 360° slotted laterals for enhanced performance. With a versatile seven-position control valve, they ensure both easy operation and maximum efficiency. Pro Series filters set a new benchmark for performance, value, and dependability, delivering crystal-clear, sparkling water with minimal maintenance required.
FEATURES:
- Integral Top Diffuser – Ensures even distribution of water over the top of the sand media bed. Full-size internal piping gives smooth, free-flowing performance
- Efficient, Multilateral Underdrain Assembly – Precision-engineered, self-cleaning 360° slotted lateral give totally balanced flow and backwashing
- Integral Molded Drain Plug – For easy draining of tank, without the lost of sand
- Flange Clamp Design – Allows 360° rotation of valve to simplify plumbing
- Unitized, Corrosion-Proof Filter Tank – Molded of tough, durable, colourfast polymeric material for dependable, all-weather performance with only minimal care
- Totally Corrosion-Proof Base – Rugged and attractively styled to provide strong, stable support
- Vari-Flo 7 Position Control Valve – Easy to use lever action handle lets you dial any of seven valve/filter functions
- Patented Service-Ease Design – Unique folding ball joint design allows lateral assembly to be easily accessed for simple servicing
SPECS:
- Filter Type: High-rate Sand: No. ½ Silica Sand (.45mm - .55mm)
- Filter Tank: Molded Polymeric
- Underdrain: 360° Self-Cleaning Slotted Laterals, Precision-Installed in Ball Joint Assembly
- Control Valve: 2” 7-Position, Top-Mount Vari-Flo with Level-Action Handle
- Valve Fastening: Flange Clamp Design
- Support Base: Injection-Molded Polymer
- Dimensions: 24 ½” W x 42” H
- Effective Filtration Area: ft.2 3.14 / m2 0.292
- Design Flow Rate: 62 GPM / 235 LPM
- Turnover: 8 Hours – 29,760 Gal / 10 Hours – 37,200 GalSand Required: 300 lbs
